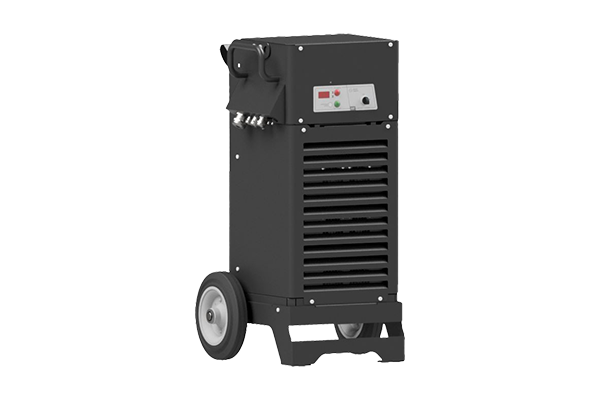

SG9
OFFBOARD FAST-CHARGER
![SG9_off-board-fast-battery-charger-zivan-top SG9_off-board-fast-battery-charger-zivan-top](https://www.zivan.it/hubfs/ZAPI%20GROUP/Zivan/SG9_off-board-fast-battery-charger-zivan-top.png)
NEW PRODUCT 🔜
Robust and powerful fast charger, ideal for harsh environment conditions. Designed for easy handling and transportation on the worksite. Compliant to global standards and regulations, it has been awarded by leading OEMs in the Non-Road Mobile Machinery industry.
- Technical Specs
- Weight and Dimensions
Voltage | Max. Current |
36 V | 240 A |
48 V | 180 A |
72 V | 125 A |
96 V | 90 A |
96 V / 48 V MULTIVOLTAGE OUTPUT | 90 A |
Weight
< 87 Kg (191 lbs)
Dimensions
Height: 1005 mm (39.6 inch)
Base: 576 mm (20.7 inch)
Width: 526 mm (22.7 inch)
APPLICATIONS
![Construction](https://8002792.fs1.hubspotusercontent-na1.net/hub/8002792/hubfs/Construction.png?width=74&name=Construction.png)
CONSTRUCTION
![GrounSupportEquipment_Prodotti](https://8002792.fs1.hubspotusercontent-na1.net/hub/8002792/hubfs/GrounSupportEquipment_Prodotti.png?width=74&name=GrounSupportEquipment_Prodotti.png)
GSE + TOW TRACTOR
![AGRICULTURAL](https://8002792.fs1.hubspotusercontent-na1.net/hub/8002792/hubfs/AGRICULTURAL.png?width=74&name=AGRICULTURAL.png)
AGRICULTURE
![TURF](https://8002792.fs1.hubspotusercontent-na1.net/hub/8002792/hubfs/TURF.png?width=74&name=TURF.png)
TURF EQUIPMENT
![AWP-1](https://8002792.fs1.hubspotusercontent-na1.net/hub/8002792/hubfs/AWP-1.png?width=74&name=AWP-1.png)
AERIAL WORK PLATFORM
SG9 Features
- Robust and Powerful
- Modular approach
- High protection level for harsh environment (IP55)
- All battery type (including Li-Ion)
- over 30 years experience with charging algorithms development
- Optional “Trolley Kit” (wheels and handles)
- CANOpen and SAE J1939 Protocols
